Key Components of a Paint Spraying Robot System

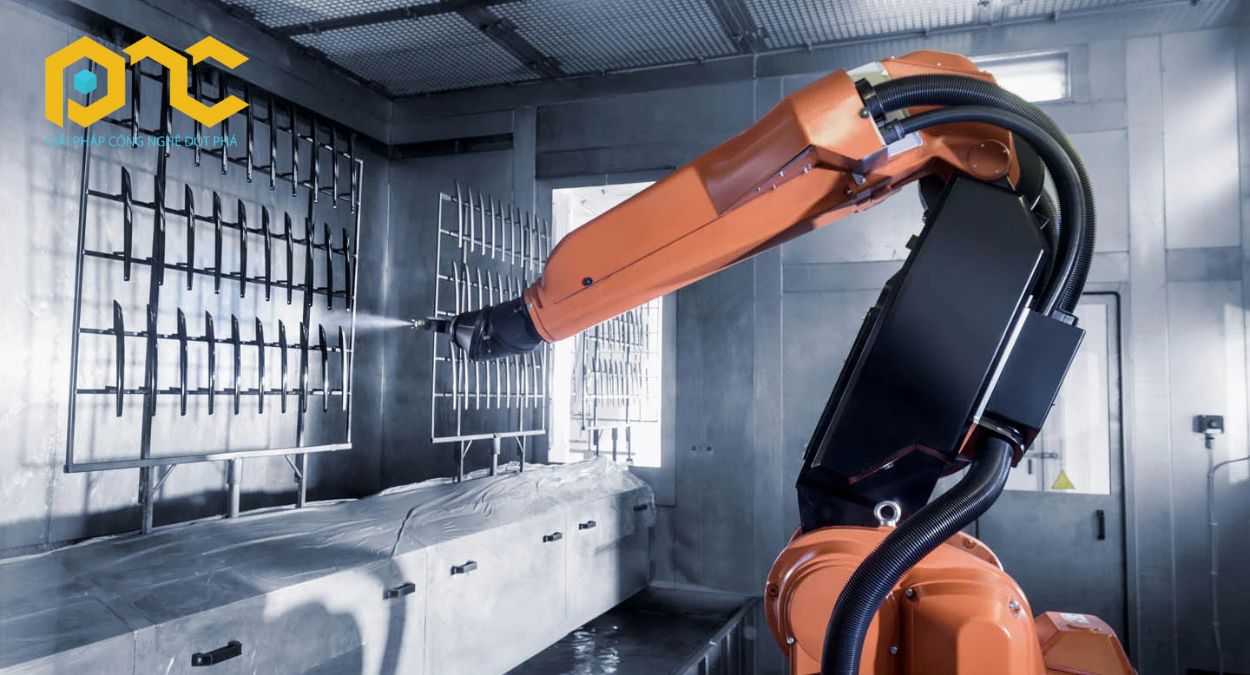

- Robot Arm (6–7 axes): Allows multi-directional movement, simulating human motions and delivering high accuracy in every spraying angle.
- Spray Nozzle (electrostatic, pneumatic, centrifugal): Each type of nozzle is suitable for different purposes and coating materials, directly affecting the smoothness and adhesion of the paint layer.
- Controller (PLC, HMI): Acts as the “brain” of the system, enabling setup, monitoring, and adjustment of spraying parameters through an intuitive interface.
- Sensors and Paint Supply System: Monitors paint levels, controls pressure, and detects objects to ensure precise application in the correct position.
- Spray Booth: A closed environment that controls the workspace, minimizes dust and paint fumes, and ensures safety during operation.
Operating Mechanism of Paint Spraying Robots
Paint spraying robots operate based on pre-programmed processes, combining precise mechanical movements with tightly controlled spraying parameters. The entire workflow, from program design to actual operation, aims to optimize paint coverage, save materials, and ensure high-quality finishes.
Operation Workflow
Before production, engineers create a control program for the robot based on the product design and technical requirements.
This process includes determining the movement path, spraying parameters (angle, speed, pressure), operation time, and areas to be treated.
(Refer to other PNC Tech solutions such as grinding robots, goods sorting robots, etc.)
Key Factors in Robot Operation
Spray angle, paint pressure, nozzle speed: These core parameters determine the quality of the coating. Incorrect settings may cause dripping, uneven color, or material waste.
Movement paths and product positioning: The robot must accurately locate the object and adjust its movement path to ensure even coverage. This requirement becomes more critical for products with complex shapes.
Supporting technologies: Thanks to 3D scanning and sensor systems, robots can recognize products, measure dimensions, identify areas to be sprayed, and adjust in real time. Some advanced systems even integrate artificial intelligence to optimize spraying and automatically adapt to changes.
In the trend of comprehensive automation, investing in paint spraying robots is not only a technological upgrade but also a strategic move to enhance long-term competitiveness for manufacturing plants. With experience in implementing diverse industrial robot projects, the PNC TECH team possesses the expertise to design, install, and optimize paint spraying robot systems that meet high-quality standards and fit each production line. We are committed to providing a complete solution—from consulting and integration to maintenance—helping businesses achieve maximum efficiency and sustainable operation.
